fixture cleaning machine, the wave soldering fixture cleaning machine is also called the carrier cleaning machine . The fixture cleaning machine is mainly used for cleaning various product workpieces, such as wave soldering fixtures, reflow soldering trays, condensation Clean the machine , clean the soldering paste , oil stains, dust, etc. on the surface of the equipment parts. The jig cleaning machine uses technologies such as high-pressure spray cleaning, high-pressure spray rinsing, high-pressure air cutting and high-flow fan hot air drying to ensure the cleaning effect...
Dezheng Intelligent Jig Cleaning Machine
The advantages of the jig cleaning machine: one-button operation, the entire cleaning process is carried out automatically, and the rinsing liquid is added and discharged by itself, without manual control. The jig cleaning machine has low energy consumption, low operating noise, no pollution, is environmentally friendly and energy-saving, has an overall stainless steel structure, and occupies a small total area. After the jig cleaning machine cleans the items, they are dry and highly clean. They can be used in subsequent processes at any time, and the effect is significantly improved compared to manual cleaning. The fully automatic jig cleaning machine uses 720-degree rotation and multi-directional spraying to clean without dead ends; the cleaning batch is large, which can greatly save labor. Integrated cleaning, rinsing, air cutting and drying functions. The fully automatic jig cleaning machine adds and drains liquid, and the cleaning and rinsing time can be set according to the human-machine interface. The machine equipment is equipped with a real-time circulation filtration system for cleaning and rinsing. The jig cleaning machine adopts a dual-pump dual-liquid circuit design. The spray system is in a closed room during cleaning. Improves liquid utilization efficiency and saves costs. The fully automatic jig cleaning machine can monitor the nozzle pressure during the cleaning process to ensure the cleaning effect.

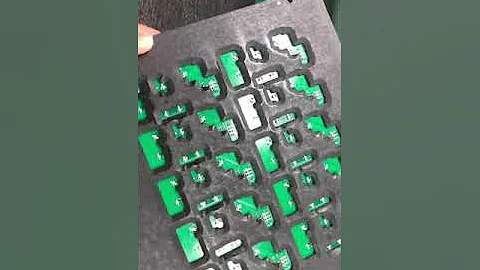

The role of fixtures in fixture cleaning machines: Many fixtures are produced due to commercial needs, because there are many types of fixtures that are customized, partly to improve productivity, repeat specific actions, or make work easier. More efficient. Since the design of fixtures is basically based on logic, general fixtures may be produced separately due to their use at different times and locations. The basic functions of the furnace passing jig: to prevent the gold finger from being contaminated; to cover and protect the SMD parts on the solder and sides, leaving only the soldering feet of the DIP parts to pass through; to prevent PCB bending and deformation; using a multi-die hole design, capable of carrying multiple pieces PCBs are passed through the furnace at the same time, which can double the production efficiency and prevent tin spills from contaminating PCBs.
The cleaning efficiency of traditional manual cleaning and organic solvent cleaning is only 60% to 70%. Jig cleaning machine and fixture cleaning are regarded as the most efficient and most effective cleaning methods in the world. , its cleaning efficiency exceeds 97%, and the cleaning cleanliness also exceeds the highest level. No matter how complex the shape of the fixture parts is, putting them in an environmentally friendly cleaning agent will have a great cleaning effect. Especially for fixture parts with complex shapes and structures that cannot be cleaned completely and efficiently by manual and other cleaning methods, it has a significant cleaning effect. The fully automatic jig cleaning machine is also very ideal for cleaning jig parts.
