Advantages of refined steel profiles
. The appearance is consistent with the aluminum profile , and the outer R angle is 90 degrees right angle.
Both refined steel profiles and aluminum profiles have a flat, straight, smooth, regular and beautiful appearance, and the outer R angle is a 90-degree right angle. The finished product has the same appearance as the aluminum profile.
Xichuang system refined steel
Xichuang system refined steel
Xichuang system refined steel
2. Refined steel profiles are slimmer.
Under the same conditions, compared to aluminum profiles, refined steel profiles can achieve smaller volume and higher strength. It is particularly prominent in the design and application of ultra-high-span glass curtain walls, which can make the main structure of the curtain wall more slender and beautiful, and have excellent lighting performance. Especially in modern special-shaped high-rise buildings, large flat-story buildings have no blind spots for lighting.
3. Refined steel profiles have higher structural strength and high resistance.

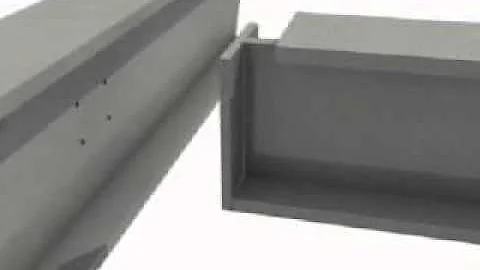

Due to the strength advantage of steel itself, the strength of refined steel can be increased by implanting reinforcing ribs in the cavity while reducing its volume. At the same time, it meets the requirements of large transparency and high strength. Xichuang System's refined steel cavity inner reinforcement plates use the traditional Chinese mortise and tenon structure, which has superior structural strength.
Xichuang system refined steel
Xichuang system refined steel
4. Refined steel profiles have rich cross-sections and flexible special-shaped structure topology performance.
Refined steel sections are divided into T-shaped, rectangular, cross-shaped, I-shaped, trapezoidal, airfoil , etc. Among them, rectangular refined steel profiles are more commonly used and can be strengthened through mortise and tenon joints to obtain day-shaped, mesh-shaped, and inner-shaped profiles. Cross-shaped equirectangular refined steel. Refined steel profiles can not only customize long-span straight-line shapes, but also customize a variety of long-span rotations, twists, arcs and other streamlined shapes, grid structures .
Xichuang system refined steel
5. assembled structure , convenient and fast.
In response to the country’s requirements for building energy conservation, emission reduction, green and low carbon, Xichuang System’s refined steel adopts a unique prefabricated structure. All parts are prefabricated in the factory and can be assembled at the project site according to the drawings. The construction process is simple and fast and is not affected by many external factors. Xichuang System can also provide welded node connections according to project needs, so that split unit welding can be completed within the factory to the maximum extent, and only hoisting and combined welding is required at the project site.
Xichuang system refined steel
6. There is no need for high mold opening costs for grinding tools.
When encountering special cross-section requirements, aluminum profiles need to be customized with corresponding grinding tools, and the mold opening cost is high. The production process of refined steel profiles is different from the extrusion of aluminum profiles, but is made through cold bending (wall thickness ≤ 3mm) and assembly and welding. Therefore, there is basically no need for special mold opening costs.
Refined steel profiles are the same as aluminum profiles. If they are greatly squeezed or bumped during transportation, they will suffer varying degrees of damage. In order to protect the refined steel profiles to the greatest extent, the outer packaging of Xichuang system will be selected according to different situations, including but not limited to lamination, kraft paper , wrapping pearl cotton , anti-collision isolation cardboard, wooden frame, special transportation bracket and other protection measure.
The advantages of refined steel profiles are far greater than those of aluminum profiles and aluminum-clad steel materials. There is no corrosion potential problem, it is not easy to deform, it has the same life span as the building, it is simple to construct, the prefabricated structure is easy to disassemble and assemble, and the secondary utilization rate is high. Xichuang system's refined steel profiles have large spans, are large and transparent, are more slender, and have excellent workmanship. They are the best choice for refined steel profiles for curtain walls.
·END·
Some materials come from the Internet, infringement and deletion
