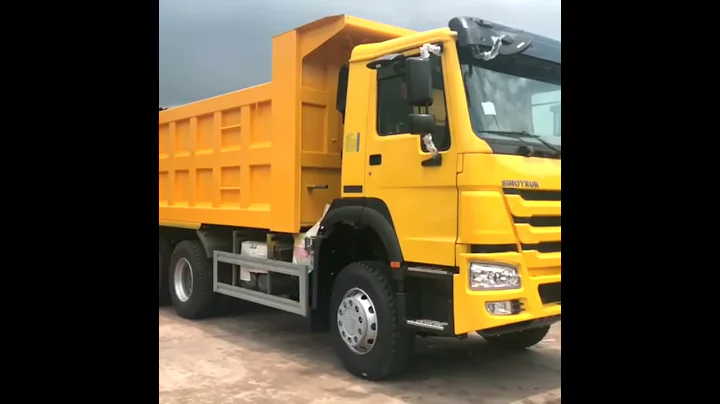

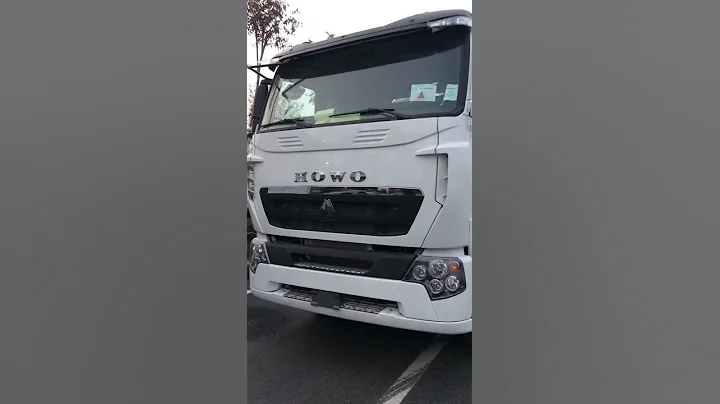

Sinotruk Howo large truck , everyone should have seen it on the road. This kind of large freight truck is commonly used in earthworks . Every time I think of the scene of it whizzing by, it is not only shocking, but also a little frightening. So have you ever thought about what it would be like to transform a SINOTRUK Howo truck into an RV and ? Today we will introduce a boundless flagship version off-road RV built by China National Heavy Duty Truck Group using its own Howo 4X4 chassis! The wheelbase of the vehicle is
600mm, the weight of is 12.2 tons, and it is equipped with part-time 4-wheel drive 10.5T power. It can run up to 2,000 kilometers on full fuel! And the various configurations are top-notch, and the appearance design is fierce and unparalleled. It can be called a domestically produced doomsday chariot! The most important thing is that you can drive it with just a driver’s license!
As mentioned above, this Wujiang flagship off-road RV is developed and built by China National Heavy Duty Truck based on its own Howo 4X4 chassis. So in terms of model design, it is not only powerful and attractive, but also takes into account the needs of users entering deserts, Gobis, mountain climbing and other situations, or driving in extremely bad weather sections such as mud puddles, heavy rain and snow, etc. The car adopts the military-grade camping cabin shape + full cage aluminum frame body structure + box thermal break bridge hardened aluminum frame six-layer reinforced insulation structure + composite closed ring box-type painted body, integrated with the German MAN TGA flexible frame + three Designed with point suspension.
And on the chassis, nitrogen shock absorption and three differential locks between the front axle, rear axle and axle and four 25/65R22.5 size all-terrain tires are added, making the SINOTRUK Wujiang flagship version Off-road RVs can not only withstand high temperatures and extremely cold weather, but can also drive smoothly on various dangerous roads and have strong escape capabilities. Coupled with the power system equipped with the entire vehicle, it can meet the various needs of serious off-road enthusiasts.
In terms of power, the Wujiang flagship off-road RV is equipped with a -cylinder 10.5T MC11 diesel turbocharged engine on the Howo 4X4 chassis, which can burst out 1900N·m super torque and 400 horsepower, and is matched with the Carter Fast AT Fully automatic transmission and part-time 4-wheel drive system, it is easy to go off-road and climb mountains. In addition, the whole vehicle can carry 6 people and has an external 400L fuel tank. When the is full of fuel, it is not a problem for the to run for a short 2,000 kilometers. Moreover, the car is also a model with a blue plate C driving qualification. As long as you get a C driving license You can hit the road!
Although the power performance is strong, driving such a large model is difficult. In order to solve the driving difficulty and driving safety, the car is also equipped with dual-circuit air brake + air cut-off hand brake + exhaust valve EVB brake , ABS, EBS, ESC, front warning system (LDWS), lane departure warning system (FCWS), BOSH steering gear, cruise control, car-machine interconnection, reversing radar, reversing monitoring, four-way monitoring system , etc. The complete set of driving and safety assistance systems further reduces the difficulty of driving and improves the safety while driving.

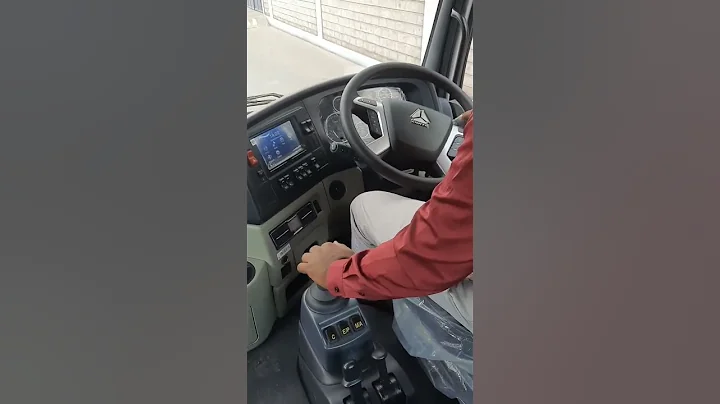

Its matching interior cab also weakens the original mechanical style of SINOTRUK Howo. It is covered in leather and blackened, which comprehensively improves the texture and style of the cab. It is also equipped with a multi-function steering wheel, LCD Equipment such as entertainment navigation screen, front and auxiliary airbag shock-absorbing seats, 30L Indel car refrigerator, and a set of in-car intelligent communication systems have greatly enhanced the comfort and convenience when driving. After the
model is designed and formed, the overall vehicle size is 995*2550*3790mm, the curb weight is 12.2 tons, and the maximum total weight is 13 tons. It reserves 800 kilograms of storage space capacity for users, and is equipped with rich and practical outdoor storage around the body. Camping equipment and water and electrical equipment.
There are all-aluminum remote-controlled passenger doors for shelters, manual screen doors, special double-layer cast aluminum sliding windows for off-road RVs, searchlights , cab roof luggage racks, -step hydraulic electric boarding steps, and installed around the body. .5m imported automatic electric wind-sensing awning , 3000W silent generator, electric motorcycle rack + external luggage compartment + external pull-out cooking stove, 12,000-pound front winch + 20,000-pound rear winch, external market Electrical system, exterior shower, fresh water tank filling port + water pump water filling port, sewage discharge port, black water tank storage port, center metal bumper and other equipment.
Electric motorcycle rack + external luggage compartment + external pull-out cooking stove is located in the parking space. It adopts an integrated electric lifting design. After it is raised, the ground clearance is very large to avoid water damage.
The bottom of the electric lift device is equipped with a 20,000-pound rear winch, which can be used to rescue other vehicles involved in danger.
In addition, the Wujiang flagship off-road RV is also equipped with a 24V800AH lithium iron phosphate battery, a 950W single crystal high-efficiency solar panel, and a 6000W anti-radiation inverter power system on the chassis. When used in conjunction with a 3000W generator, it can achieve long-lasting No need for charging capability. In terms of water use, the vehicle is equipped with 50L stainless steel clean water tank with insulation layer and 75L stainless steel insulation gray water tank, which is enough for a long trip.
As for an RV that can go off-road, the structure, power, and functions of the vehicle need to meet the user's requirements, as does the living space inside the vehicle! The interior design of the Wujiang flagship off-road RV adopts red oak furniture + brushed aluminum plate + environmentally friendly RV-specific solid wood floor design to highlight the retro and calm style. In addition, thanks to the large size of the model, the car is equipped with living functional areas such as the front deck reception area + the rear horizontal upper and lower beds + the separated kitchen on the right side, which have also been greatly improved, and the life The space seems very open and bright, not stuffy.
The reception area on the left side of the car has a sofa and booth design. The seats are all covered with imported superfiber material to improve the comfort of riding. The middle lift table is made of oak , which can be linked with the sofa to form an integrated The size of the sofa bed is 900*1000mm.
Above the reception area, there is a ceiling-mounted storage cabinet and a built-in Mitsubishi Heavy Industries inverter air conditioner for driving/parking. A 32-inch Philips LCD TV + Japanese YAMAHA eight speakers are fixed behind the sofa seat. Sound system, the inner wall is equipped with two ventilation viewing windows, and the Truma COMBI fuel heater and hot water all-in-one heating outlet and 220V power socket are installed at the bottom.
It is worth noting that there is no closed design between the reception area and the cockpit. There is an openable interactive window for front and rear observation and communication.
On the right side of the reception area, there is an in-car kitchen area, separated by the middle door of the RV. separated design, greatly improves the cooking space. With various cooking equipment in the kitchen, it can be used at any time even in the wilderness of the Gobi. If you are late for hot pot and other delicacies, there is no need to eat frozen or other simple foods.
The kitchen has a separate design. On the left side, there is a Siemens induction cooker, a 156L Thetford RV-specific refrigerator, a RV-specific range hood , spice racks and various storage cabinets and special storage cabinets for kitchen utensils, etc. .
The left side is the vegetable washing area, which is equipped with a covered vegetable washing sink, folding faucet, Siemens microwave oven and multi-layer storage cabinets.
Above the middle door of the RV, there is an integrated management and control assembly for the vehicle's water and electricity system. The touch + mechanical rocker dual control design has simple functions and is not difficult to operate.
The bathroom on the opposite side of the kitchen adopts an integrated closed design and is made of waterproof, anti-corrosion and anti-static plates. It has a spacious space and rich configurations.The equipment is equipped with special pull-out toilet for Thetford RV, water-saving shower head, ceramic washbasin, high-foot faucet, beauty mirror, shower curtain, waterproof lighting, ventilation window, two-way ventilation fan, storage rack, etc. Washing function.
The master bedroom at the rear of the car adopts the design of horizontal double and double beds. There is also a combined bedside table inside the bed, which is convenient for storing personal belongings and clothing. At the same time, there are ventilation windows at the end and right side of the bed, and ventilation fans on the top to enhance the lighting and ventilation effects of the master bedroom space.
The upper bunk is a single bed with a size of 400*730mm. The bed board can be lifted up to free up sufficient three-dimensional space for the lower bunk. The lower bunk is a double bed with a size of 2050*1000mm, which is suitable for two adults and one child to rest.
Okay, the above is the overall introduction of this Wujiang flagship version off-road RV built by China National Heavy Duty Truck. What do you think of this purely domestically produced RV with a dead weight of 12 tons and can be driven by a blue plate C-book? Welcome to leave messages and communicate in the comment area.
